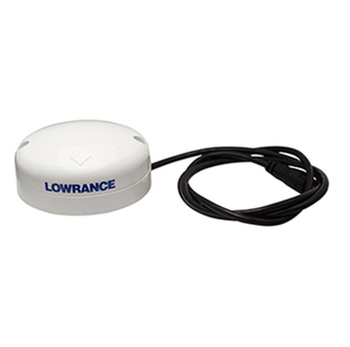

Point-1 GPS antenna provides extremely accurate and rapid boat position and speed updates to the network. Built in magnetic compass provides chart stabilization and radar overlay, plus accurate course over ground even at low speeds. Note: For Autopilot, use Point-1AP or Precision9!
Specifications
Point-1 GPS antenna provides extremely accurate and rapid boat position and speed updates to the network. Built in magnetic compass provides chart stabilization and radar overlay, plus accurate course over ground even at low speeds. Note: For Autopilot, use Point-1AP or Precision9!
Connectivity
N2K PG Ns126992, 129025, 129026, 129029, 129539, 129540, 127258, 127250, 127251, 127257
NMEA 2000 Connectivity1x NMEA 2000 Micro-C port, 2 LEN
Approvals
Approvals ComplianceCE under RED 2014/53/EU Directive
Electrical
Power Consumption max2 W
Power Consumption typical< 2 W
Supply Voltage9 V DC - 18 V DC
Environment
Humidity40ºC, 93% RH, operating
Operating Temperature Range-25°C to 60°C (-13°F to 140°F)
Storage Temperature Range-40 to + 85ºC (-40 to + 185ºF)
WaterproofratingIPX7
GPS
CorrectionDGPS, WAAS, EGNOS, GLOANASS, MSAS
GPS Receiver Channels32 Channels
Position Accuracy3m (9.8 ft)
Time to First Fix3s (Cold Start 50s)
Update rateUp to 10 Hz (1,5,10)
Heading Sensor
Heading Sensor Accuracy+/- 3º Heading, +/- 1º Roll/Pitch @ 30º
Heading Sensor Data AvailableMagnetic, Heading, Rate of Turn, Heel Angle, Trim Angle
Heading Sensor Data ProtocolNMEA 2000
Sensor TypeSolid state
Physical
Compass Safe0.5 m (20")
Mounting TypeFlush mount / Standard Pole Mount
Weight0.14 kg (0.3 lbs)
Other
Warranty Period2 Years
What's in the box?
-
N2K-T-RD Network T-Connector
-
N2KEXT-15RD 15ft Network Extension Cable
