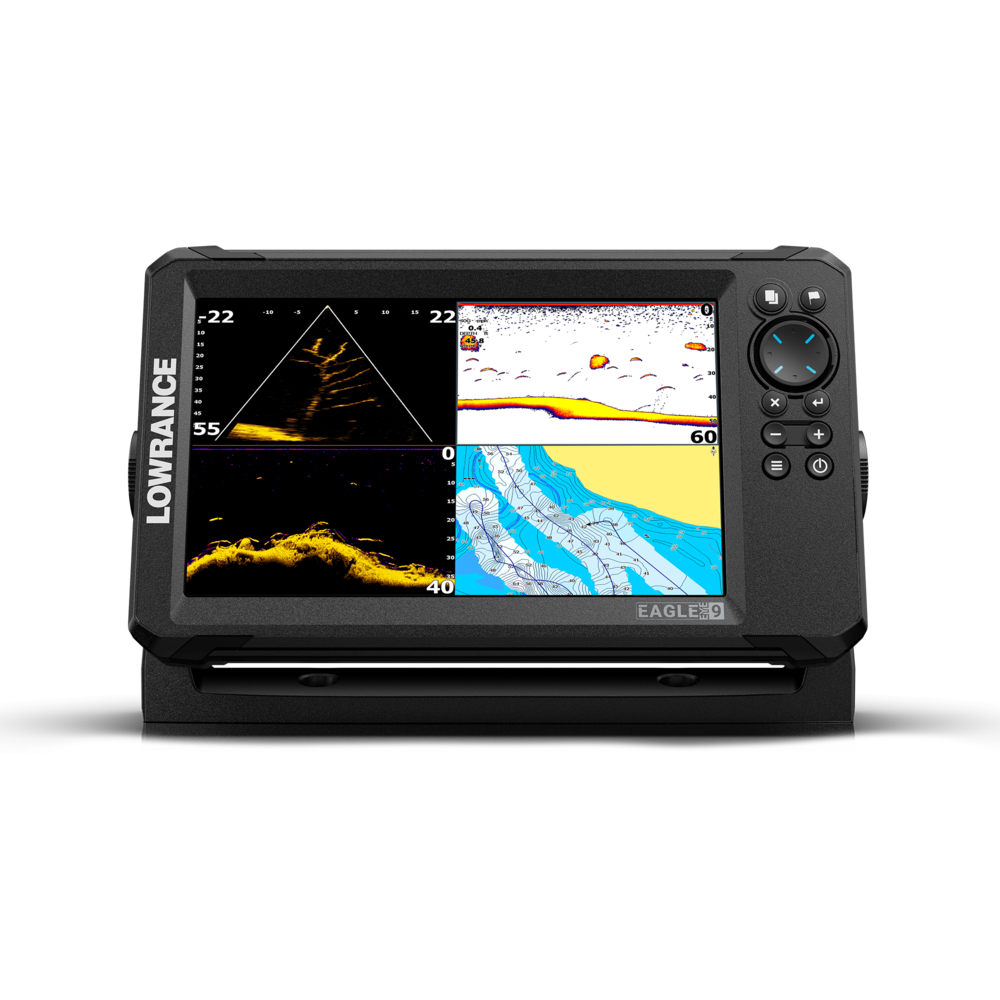

Lowrance Eagle Eye™ 9 Live + C-MAP®

$1,399.00
$1,399.00
Sale Sold out

SKU: 9420064132607

Shipping calculated at checkout.

Eagle Eye™ 9 Live + C-MAP®: 9" IPS screen, Eagle Eye™ transducer, C-MAP® Discover microSD card charts for the US and Canada

The complete live sonar solution

Easy and affordable access to live sonar lets you watch fish react to your lure in real time. Eagle Eye™ brings you the same best-in-class live sonar resolution as seen on ActiveTarget® 2 in more focused down and forward views. With a smooth and consistent image, Eagle Eye provides all the detail you need to know when to strike.

Full Flexibility
The highly-focused live sonar combines with CHIRP and DownScan Imaging™ (with FishReveal™) in a single transducer, giving you true Eagle-like vision for any kind of fishing.
CHIRP SONAR
CHIRP sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools.
DOWNSCAN IMAGING™
DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath your boat.
FISHREVEAL™
Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification
AUTOTUNING SONAR
Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.
C-MAP® DISCOVER ONBOARD™
Spend more time fishing and less time searching, with high-resolution C-MAP® Discover OnBoard™ charts included for the US and Canada. With Eagle, you have all the detail you need to discover and navigate to the best fishing spots, faster.

GENESIS LIVE

Know your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.

  • 4 sonar views from a single transducer with no module needed (Live Forward, Live Down, CHIRP Sonar, DownScan Imaging™ with FishReveal™)
  • Autotuning live sonar with focused down and forward views
  • Detailed C-MAP® charts feat. Genesis® Live
  • IPS screen, viewable from all angles, even in polarized glasses
  • New reliable twist-lock connector system for easy installation in any boat or kayak
  • SD card slot for software updates, Genesis Live recording and charting add-ons.
  • See fish hiding in cover with FishReveal™ mode
  • Increase contrast and viewability with all-new Imaging color palettes

Display

Backlight Color Pure white LED
Resolution 1024 x 600
Screen Brightness 1000 NITS
Size and Type 9" IPS Display
Viewing Angles 85° top/bottom, 85° left/right

Electrical

Power Consumption, max. 650 mA @ 12 V DC with backlight on full
Power Consumption, typical 650 mA @ 12 V DC with backlight on full
Recommended Fuse Rating 3A
Supply Voltage 12v DC (10.8-17VDC)
Humidity 66°C, 95% relative humidity (RH) for 48 hours

Environment

Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
Waterproof rating IPX7 with card door closed

GPS

Correction SBAS
Time to First Fix 45s

MFD

Cartography supported C-MAP® DISCOVER™.
External Storage 1 slot (microSD® 32 GB maximum)
Waypoints, Routes, Tracks 3000 Waypoints 100 Routes 100 Trails
Compass Safe Distance - Metric, imperial 12" (300mm)

Physical

Dimensions (W x H x D) 287.2 mm (11.30") x 162.5 mm (6.39") x 90 (3.54)
Mounting Type Gimbal bracket or dash mount
Weight 0.9 kg (1.98 lb)

Other

Warranty Period 1 Year + 4 additional years of upgrade options totaling 5 years
Interface Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight



Comes with:  EAGLE 5"/ 7"/ 9" POWER CABLE 000-16314-001
